We offer a range of image splitters for simultaneous multi-channel imaging on one or more sensors. This offers a major benefit over manual or electronic filter changers, as there is no longer a need to pause acquisition while the filter position is changed. This allows your camera to be operated in fast stream modes. All devices have simple user friendly controls and excellent pixel registration between channels (>99.9% using sCMOS, Deep Well CMOS (SciMeasure), or large format EMCCDs).

The channels will typically be defined by bandpass interference filters from the Chroma Technology range, to allow multi-wavelength imaging, however the separation can also be made on the basis of polarisation state, focal depth, or any other modality which requires the same field of view to be recorded under different conditions. The table below shows the most common products although it is possible to combine these to produce six or even eight channel devices, or to incorporate spinning or stepping filter wheels – please ask for details.

Splitters1

Optosplit III(single sensor)

Splitters2

MultiCam (three sensors)

Image Splitters Specification

View Table

Device Channels per camera Cameras Sensor size (mm) & Split mode (Bypass)
OptoSplit II LS 2 1 16.6 x 14.0, Split mode
(13.3 x 13.3, ByPass)
redgreengreenfinal1
OptoSplit II LS ByPass 2 1 16.6 x 14.0, Split mode
(13.3 x 13.3, ByPass)
redgreengreenfinal1
OptoSplit III LS (TripleSplit) 3 or 2 1 16.6 x 14.0, Split mode
(ByPass)
redgreenbluegreenfinal1

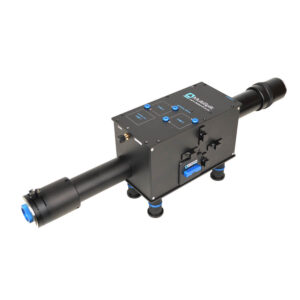

MultiSplit LS
(available as a custom design order only)
4 1 13.3 x 13.3, Split mode
allcolour
SplitCam LS 1 & 2 2 16.6 x 14.0, Split mode
(13.3 x 13.3, ByPass)
redgreengreen-with-plus
TwinCam LS 1 2 16.0 x 16.0
lightgreenred-with-plus
MultiCam LS 1 2, 3 or 4 13.3 x 13.3
bluegreen-with-plusred-with-plusgrey-with-plus

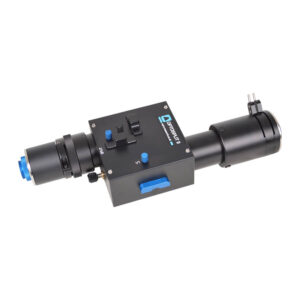

  • OptoSplit II


    • Dual emission image splitter
    • 1 or 2 images on a single camera
    • Large sensor (sCMOS) format

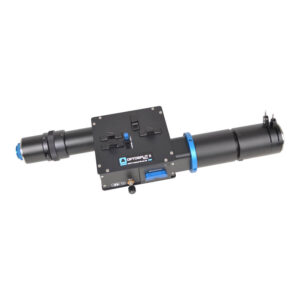

  • OptoSplit II ByPass Image Splitter


    • Dual emission image splitter
    • 1 or 2 images on a single camera
    • Large sensor (sCMOS) format

  • Optosplit III


    • Triple emission image splitter
    • 1, 2 or 3 images on a single camera
    • Large sensor sCMOS format

  • OptoSpin IV


    • High speed filter wheel
    • Standard control box can drive up to two wheels
    • Optimised for microscopy and other demanding applications
    • Control via USB or digital interface

  • OptoMask


  • OptoMask
