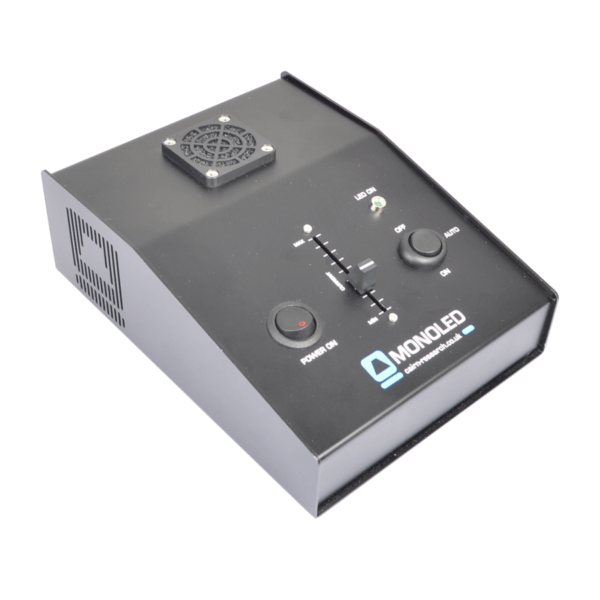

MonoLED light source

• Brightfield, phase contrast and DIC
• Single wavelength fluorescence
• Compact, turn-key illuminator

Product Description

LED light source

Single-channel illuminator
The MonoLED is designed with simplicity in mind and has a wide range of control options to operate manually or with any software.

Following the success of our OptoLED range we identified the demand for a compact affordable single-channel illuminator which would “just work” for transmitted light and fluorescence illumination that required simple software control. Rather than compromising performance we opted to support powerful (3A) devices (for epi-fluorescence illumination) and a full range of couplings and control options. Unlike our other illuminators, which use a modular MultiPort coupling system, the MonoLED is supplied complete with a condenser and mount for your chosen microscope.

Download Data Sheet Manuals video support Get a Quote Comparisons Back to LED Light Sources

Additional information

Key Benefits

• Digital, analog and USB / serial legacy support
• Incoprorates filter to avoid phosphor artefacts
• Powerful 3A emitter (epi-fluorescence only)
• Compact, affordable, turn-key illuminator
• Wide range of microscope adapters for research and clinical scopes

Applications

• Brightfield, phase contrast and DIC
• Single wavelength fluorescence
• Halogen replacement if a shutter is required

Recent Publications

2019

  • Simultaneous Dual Optical Mapping of the Heart Using a Single Excitation, Single Camera Approach – Read here
  • ElectroMap: High-throughput open-source software for analysis and mapping of cardiac electrophysiology – Read here
  • A Bronze Age cairn and rapier find from Swaites Hill, Cloburn Quarry, South Lanarkshire – Read here
  • ElectroMap: High-throughput
    open-source software for
    analysis and mapping of cardiac
    electrophysiology – Read here
